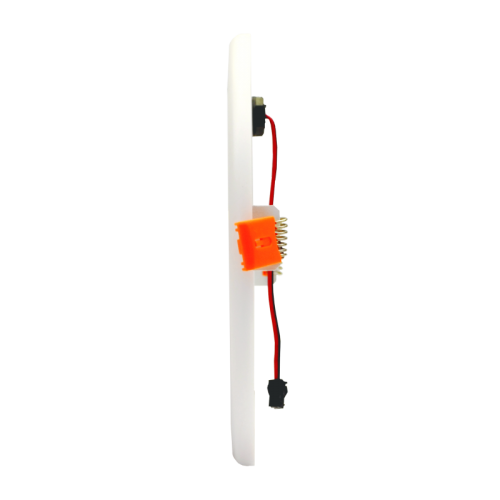

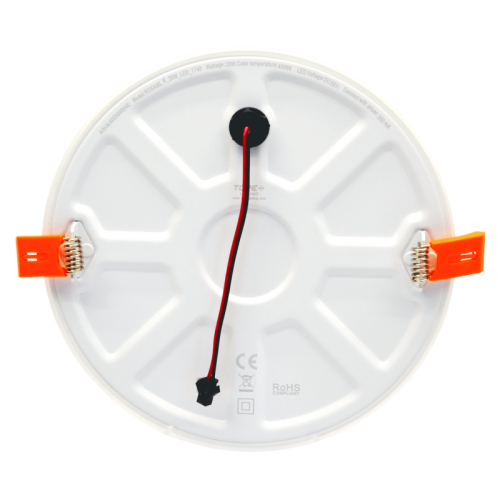

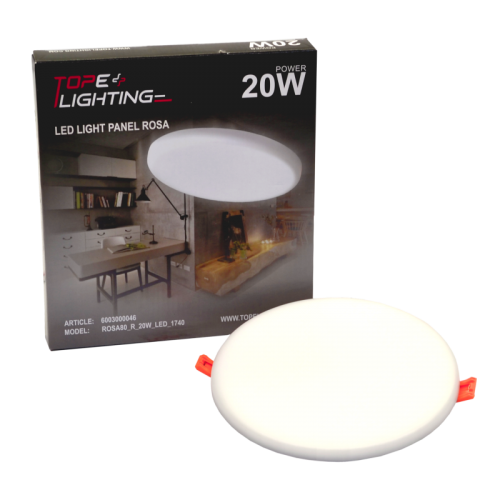

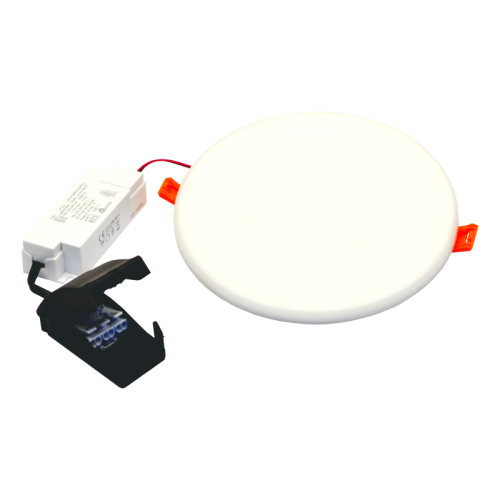

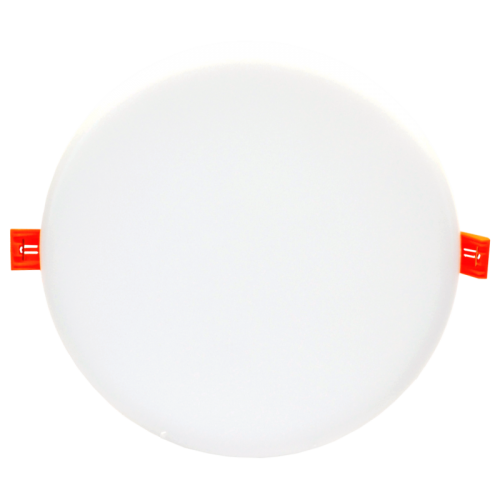

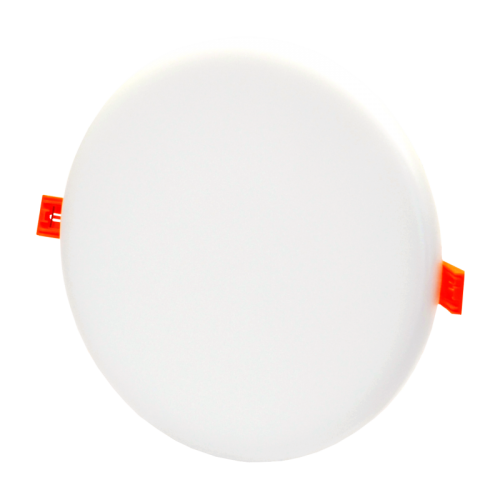

20W round, recessed LED panel ROSA

Product video

Code: 6003000046

Model: ROSA80_20W_R_LED_1740

A recessed LED luminaire with a 10mm no frame profile. Electronic, fixed output gear. IP65 enviromental degree, IK08. Driver IP20, IK03. Body: aluminum, white painted (RAL9016). Diffuser: Polycarbonate, UV-stabilised. Electrical connection via push wire terminal blocks Complete with 4000K LED.

Power: 20W
Total power: 18,1 W
Kelvin: 4000K
Luminaire efficiancy: 97,56 lm/W
Luminaire luminous flux: 1766 lm
Beam angle: 120°
Color rendering index (CRI): ≥80
Unified Glare Rating (UGR) <21,5
Protection class IK: IK08
Type of protection IP: IP65
LED Brand: EPISTAR
Driver: LS-20-300RI
Rated median usefull life: 50000 L80/B10 25⁰C
Dimensions: Ø185x24 mm
Cut-out size: Ø164mm
Weight: 0,340 kg
Waranty (months): 36

Lighting calculator 20W round, recessed LED panel ROSA
